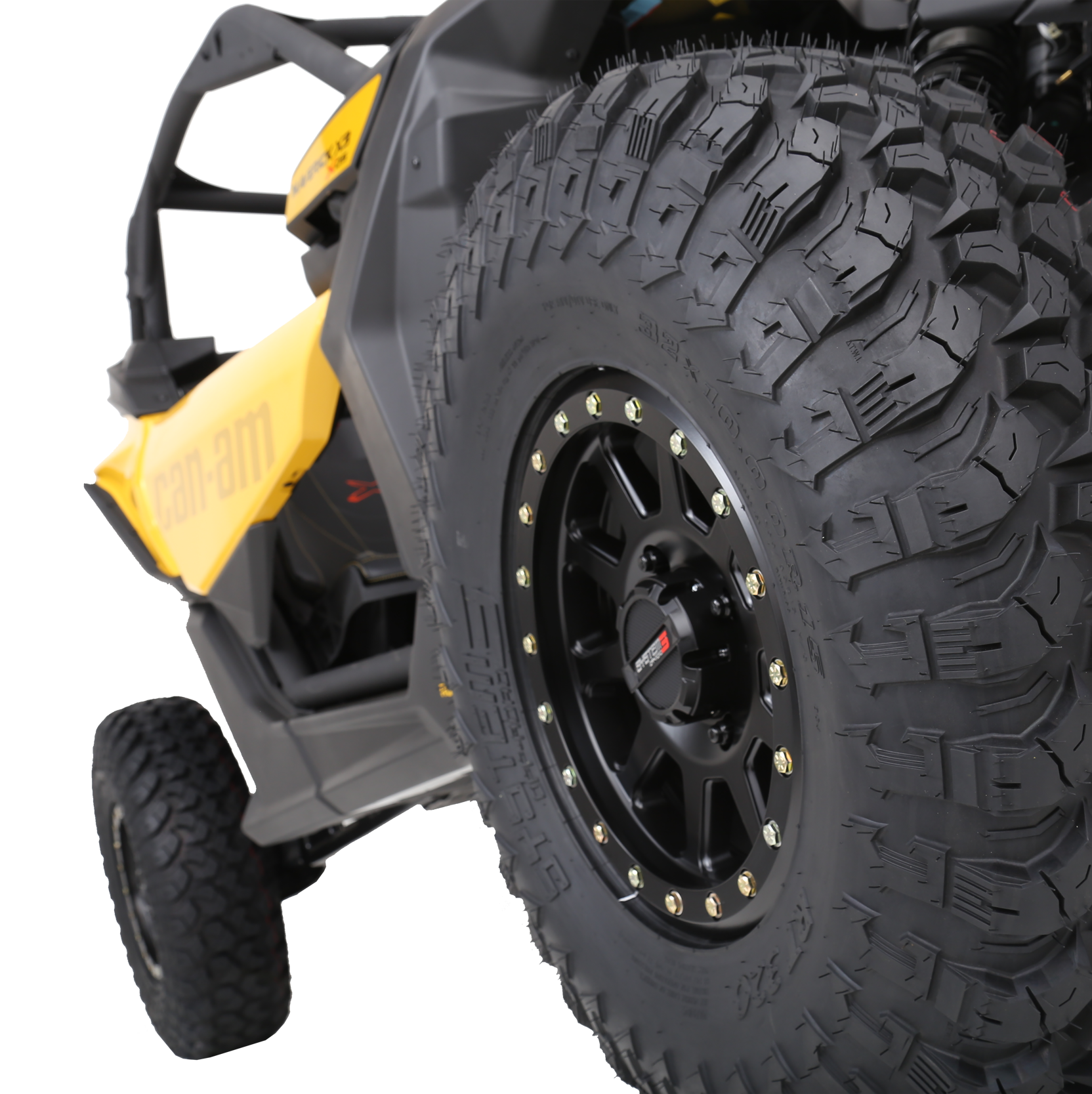

SB-3 Beadlock

Features

Available in 14x7, 14x10 & 15x7 sizes
10mm billet ring with 20  5/16-inch grade 8 bolts
Stainless-steel lug inserts – Industry First (see detail shot below)
1,500-pound load rating
Bolt-in center cap (see detail shot below)


Below the beadlock ring, the SB-3 features two sets of bolt holes in case a hole gets stripped - simply rotate ring to new holes. Plus, diamond notches in the clamping surface improve the tire's seal to the wheel.

SB-3 14-inch Beadlock Specifications

SIZE  -  BOLT PATTERN  -  OFFSET  -  FINISH  -  PART #

14x7  -  4/110  -  5+2 (+30mm)  -  Matte Black  -  19-0077
14x7  -  4/110  -  5+2 (+30mm)  -  Machined  -  19-0068

14x7  -  4/137  -  5+2 (+30mm)  -  Matte Black  -  19-0078
14x7  -  4/137  -  5+2 (+30mm)  -  Machined  -  19-0069

14x7  -  4/156  -  5+2 (+30mm)  -  Matte Black  -  19-0079
14x7  -  4/156  -  5+2 (+30mm)  -  Machined  19-0070

14x10 (rear)  -  4/110  -  5+5 (+0mm)  -  Matte Black  -  19-0080
14x10 (rear)  -  4/110  -  5+5 (+0mm)  -  Machined  -  19-0071

14x10 (rear)  -  4/137  -  5+5 (+0mm)  -  Matte Black  -  19-0081
14x10 (rear)  -  4/137  -  5+5 (+0mm)  -  Machined  -  19-0072

14x10 (rear)  -  4/156  -  5+5 (+0mm)  -  Matte Black  -  19-0082
1
4x10 (rear)  -  4/156  -  5+5 (+0mm)  -  Machined  -  19-0073

SB-3 15-inch Beadlock Specifications

SIZE  -  BOLT PATTERN  -  OFFSET  -  FINISH  -  PART #

15x7  -  4/110  -  5+2 (+30mm)  -  Matte Black  -   19-0083
15x7  -  4/110  -  5+2 (+30mm)  -  Machined  -  19-0074

15x7  -  4/137  -  5+2 (+30mm)  -  Matte Black  -  19-0084
15x7  -  4/137  -  5+2 (+30mm)  -
Machined  -  19-0075

15x7  -  4/156  -  5+2 (+30mm)  -  Matte Black  -  19-0085
15x7  -  4/156  -  5+2 (+30mm)  -  Machined  -  19-0076

 Optional color rings in Red, Blue and Raw finish for customizing. Plus optional black bolts.

Optional color rings in Red, Blue and Raw finish for customizing. Plus optional black bolts.

Industry-first stainless lug insert.

Bolt-on center cap.

14x10 size, for rear-mount, sand dune use only.
