SB-4 Beadlock

Features

Available in 14x7 & 15x7 sizes, plus NEW 10-inch 14s and 15s!

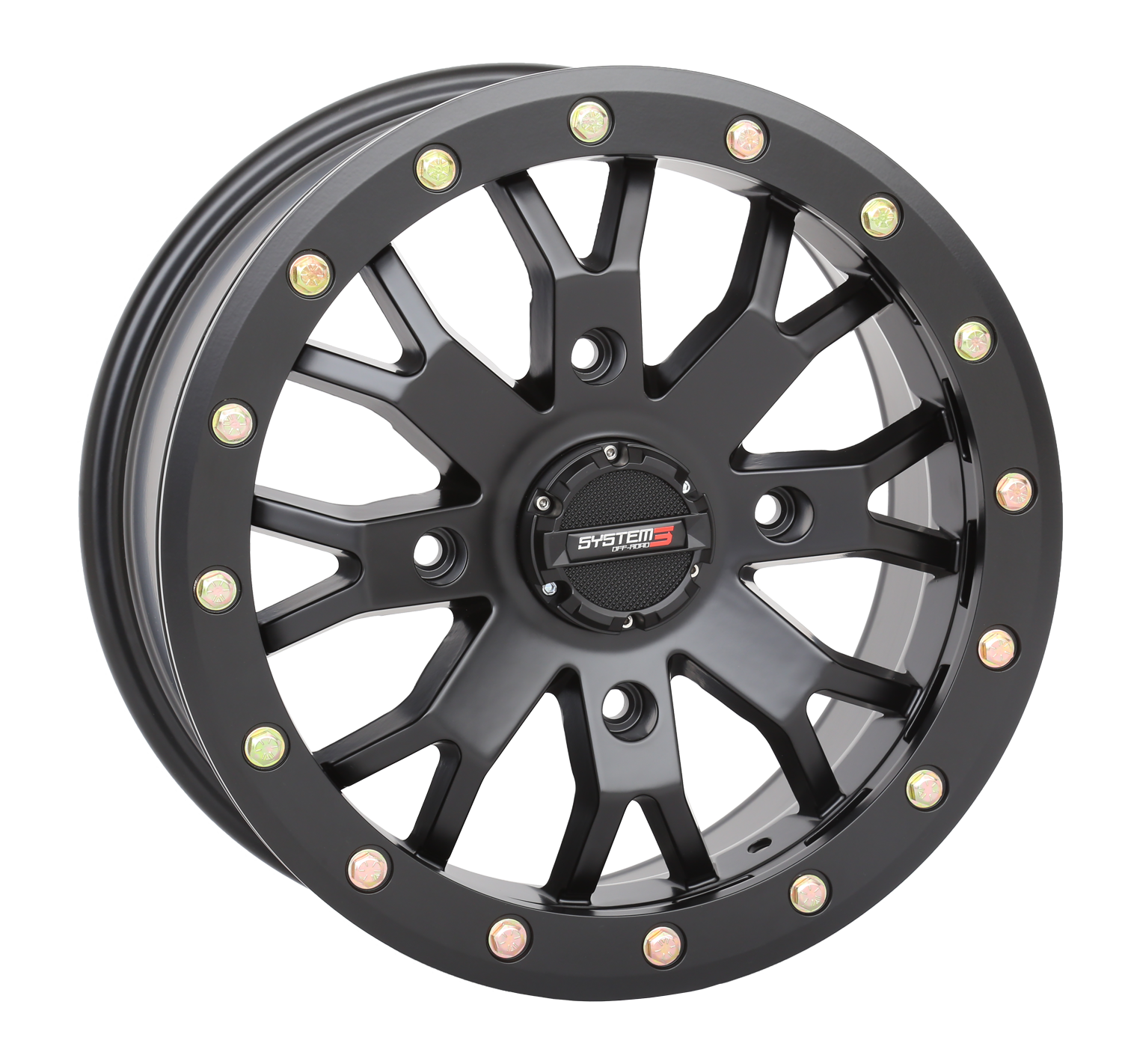

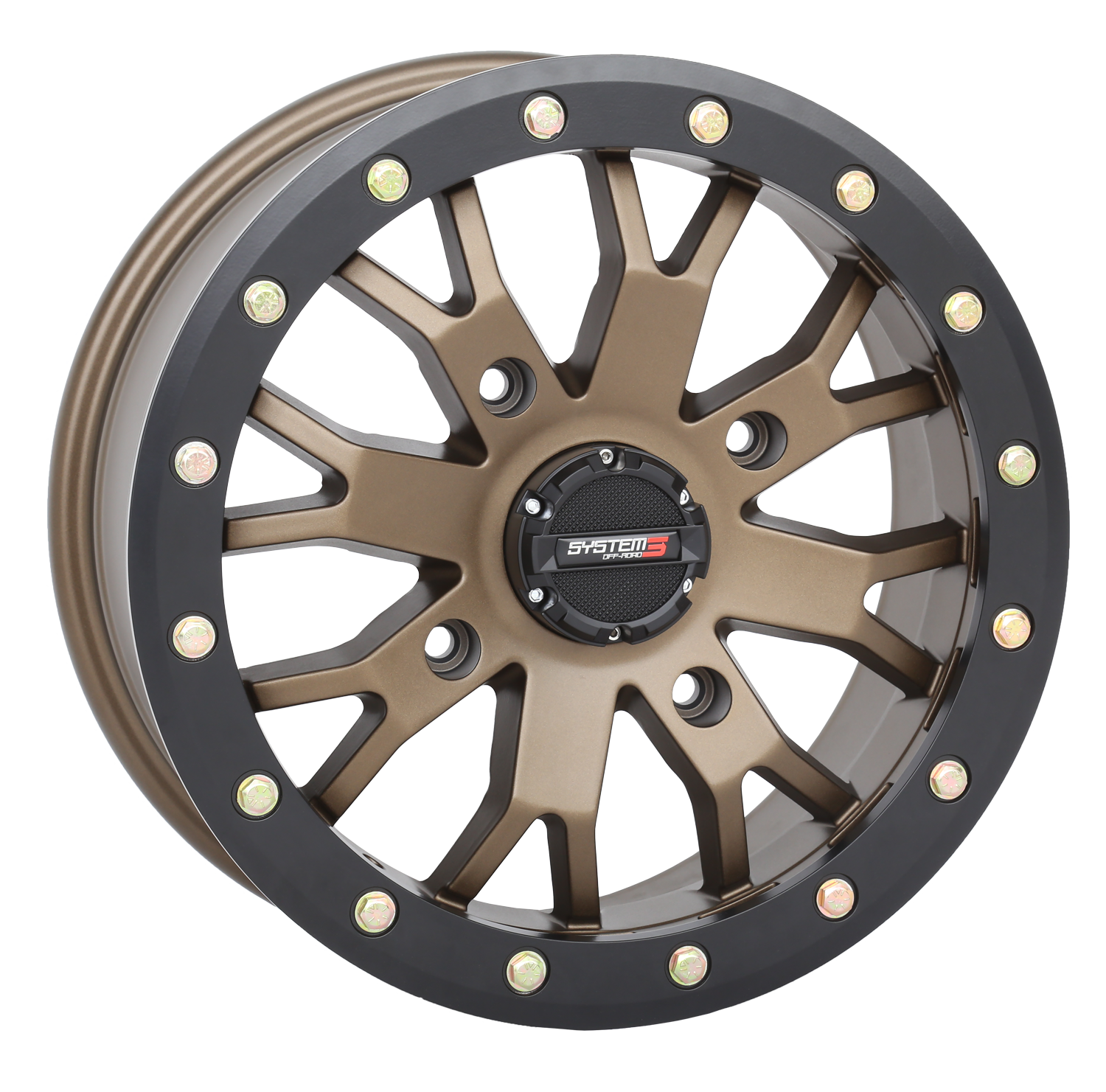

Matte Black or Bronze finish choices
10mm billet ring with 16  5/16-inch grade 8 bolts
Styled like the popular ST-3 simulated beadlock
1,200-pound load rating
Bolt-in center cap


SB-4 14-inch Beadlock Specifications

SIZE  -  BOLT PATTERN  -  OFFSET  -  FINISH  -  PART #

14x7  -  4/137  -  6+1 (+45mm)  -  Matte Black  -  521730
14x7  -  4/137  -  4+3 (+15mm)  -  Matte Black  -  521731
14x7 - 4/156 - 6+1 (+45mm) - Matte Black - 521732
14x7 - 4/156 - 4+3 (+15mm) - Matte Black - 522562


14x7  -  4/137  -  6+1 (+45mm)  -  Bronze  -  521733
14x7  -  4/137  -  4+3 (+15mm)  -  Bronze  - 521734
14x7 - 4/156 - 6+1 (+45mm) - Bronze - 521735
14x7 - 4/156 - 4+3 (+15mm) - Bronze - 522563

14x10  -  4/137  -  5+5 (-5mm)  -  Matte Black  -  522578
14x10  -  4/137  -  5+5 (-5mm)  -  Bronze  - 522580
14x10 - 4/156 - 5+5 (-5mm) - Matte Black - 522579
14x10 - 4/156 - 5+5 (-5mm) - Bronze - 522581

SB-4 15-inch Beadlock Specifications

SIZE  -  BOLT PATTERN  -  OFFSET  -  FINISH  -  PART #

15x7  -  4/137  -  6+1 (+45mm)  -  Matte Black  -  521736
15x7  -  4/137  -  4+3 (+15mm)  -  Matte Black  -  521737
15x7 - 4/156 - 6+1 (+45mm) - Matte Black - 521738


15x7  -  4/137  -  6+1 (+45mm)  -  Bronze  -  521739
15x7  -  4/137  -  4+3 (+15mm)  -  Bronze  - 521740
15x7 - 4/156 - 6+1 (+45mm) - Bronze - 521741

15x10  -  4/137  -  5+5 (-5mm)  -  Matte Black  -  522582
15x10  -  4/137  -  5+5 (-5mm)  -  Bronze  - 522584
15x10 - 4/156 - 5+5 (-5mm) - Matte Black - 522583
15x10 - 4/156 - 5+5 (-5mm) - Bronze - 522585

Optional color rings in Red, Blue and Raw finish for customizing. Plus optional black bolts. (SB-3 beadlock rings shown, same colors available.)

Optional color rings in Red, Blue and Raw finish for customizing. Plus optional black bolts. (SB-3 beadlock rings shown, same colors available.)
